Currently, most of the motor manufacturers use strong neodymium permanent magnets in their motors. For example, there is one of motor, called linear motor, using open magnetic field instead of closed magnetic field, generating moving magnetic fields by powerful ndfeb rare earth magnets, can transform electric energy to linear motion mechanical energy directly without any intermediate conversion mechanism of transmission.

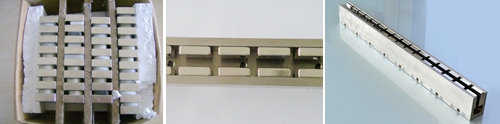

In recent years, their applications expand day by day, and maglev train is one of perfect linear motor driving. The strong permanent block magnets are assembled on the steel rail. They are composed of magnetic track which is a very important part of linear motors.

Sintered NdFeB Rare-Earth Permanent Magnet

Main components: Nd: 24-28%
                                 Dy-Tb: 3.0-8.0%
                                 Al: 0.1-0.8%
                                 B: 1.0-1.2%
                                 Fe: 60-67.8%
                                 Nb: 0.3-1.4%

Grades of ndfeb magnet: N35, N38, N40, N42, N45, N48, N50, N52, N55
                                           N30M, N33M, N35M, N38M, N40M, N42M, N45M, N48M, N50M
                                           N30H, N33H, N35H, N38H, N40H, N42H, N45H, N48H, N50H, N52H
                                           N30SH, N33SH, N35SH, N38SH, N40SH, N42SH, N45SH, N50SH
                                           N28UH, N30UH, N33UH, N35UH, N38UH, N40UH, N42UH
                                           N28EH, N30EH,N33EH, N35EH, N38EH
                                           N28AH, N30AH, N33AH

Shapes of NdFeB magnets: Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and other customized shapes.

Platings of neodymium magnet: NiCuNi, Zn, Black Epoxy, Grey Epoxy, Gold, Phosphorization, Passivation and so on

Certification: ISO9001, TS16949,CE,ROSH

China Magnets Source Material Ltd manufactures linear motor track rare earth magnets to meet the needs of your industrial automation application. Our NdFeB–magnets for linear motor rail are customized with high quality, and we have no MOQ. Contact us for your new magnet prototype.
