Magnetic Bar

China Magnets Source Material Ltd manufactures all types of magnetic bar, which is the main part of different magnetic grate separators. It can getter effectively ferrous chips and metal particles from loosely packed, free Flow of raw materials.

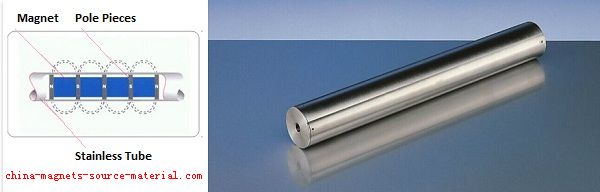

Description of Magnetic Bar:

1. Standard magnetic bars are 25m in diameter and any length according to customer’s request, the max. length up to 2500mm, square or other magnetic tubes with different shapes and dimension are also available. Surface gauss: 3000-13000Gs
2. Usually made of Neodymium magnets or Ferrite/Ceramic magnets and seamless 304 or 316 stainless tubes, magnetic bar can be fine polished and fully welded to meet food grade or pharmacy application.
3. Generally the max working temperature is 80℃, we can offer up to 350℃ to meet your special applications.
4. Various ends-thread holes, doubles screw bolt, nail head, loop and other kind ends are also available.

If you need to make the magnetic bar, please give us the below information, then we will offer you.

a) Dimensions
b) Ends design
c) Working temperature
d) Magnetic strength
