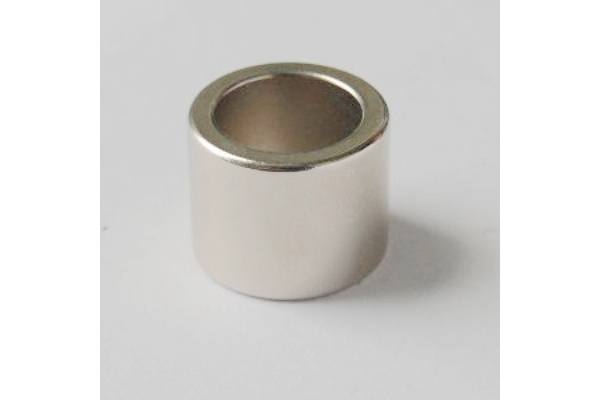

Radially Orientated Sintered NdFeB Ring

Due to the constraint of material, sintered neodymium used in motors is assembled into ring by segment magnet. China Magnets Source Material Limited can offer radially orientated Sintered NdFeB rings with a wide variety of grades and different coating options after researching continually in Sintered NdFeB material and its structure, orientation compression, magnetizing method, sintering and heat treatment process. Radially orientated sintered NdFeB ring greatly improve motor output properties, significantly reduce the motor loss at the same time.

Advantage:

• High precise geometry
• Homogeneous distribution of magnetic field
• Simple design and assembly, cost efficiency
• Precision of motor performances
• Huge marketing potential

Application:

• Actuators
• Magnetic bearings
• Magnetic clutch
• Motors (Peripheral motor, Spindle motor, Steering control motor, Stepper motor）
• Other new products

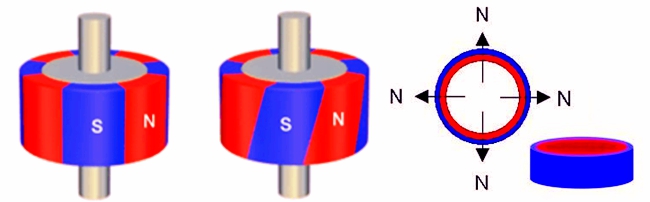

Standard and skewed pole types are available for ring. OD, ID and H are all critical factors, pole numbers are also dependent on size, so for further information of radially orientated Sintered NdFeB rings, please contact us directly. Our engineer will evaluate your magnet design and give you some suggestion if needed.
