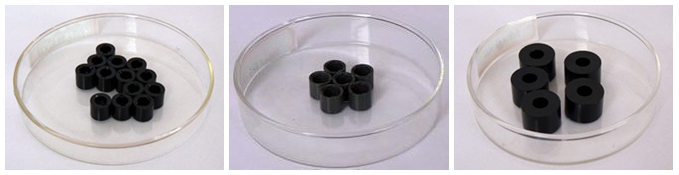

Feature:

1. The magnetic properties of small thin-walled ring are much higher than ferrite magnet;
2. Because of once forming the shape, the size precision is better than sintered NdFeB magnets;
3. The small thin ring can be make multi-polar magnetization;
4. Working temperature high to Tw = 150 ℃;
5. Good in corrosion resistance;
6. The smallest of diameter thin wall ring can reach to1mm.

Application: Stepper motor, brushless motor, DC motor, starter motor, DVD spindle motor, CD-ROM

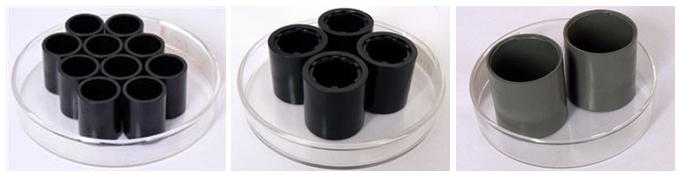

Big ring bonded magnet

Feature:

1. The magnetic properties of big ring bonded magnet are much higher than ferrite magnet;
2. Because of once forming the shape, the size precision is better than sintered NdFeB magnets;
3. The Big ring bonded magnet can be make multi-polar magnetization;
4. Working temperature high to Tw = 150 ℃;
5. Good in corrosion resistance;
6. The largest of outer diameter can reach to145mm.

Application: Auto motor, household appliances motor, Computer/phone/electric tools

Gray ring magnet

Feature:

1. The surface of gray ring magnet coated with the gray circle electrophoresis paint, her magnetic property is much higher than ferrite magnet;
2. Because of once forming the shape, it needs not to be posted processing, the precision of size is better than sintered NdFeB magnets;
3. The gray ring bonded magnet can be make multi-polar magnetization;
4. Working temperature high to Tw = 150 ℃;
5. Good in corrosion resistance.

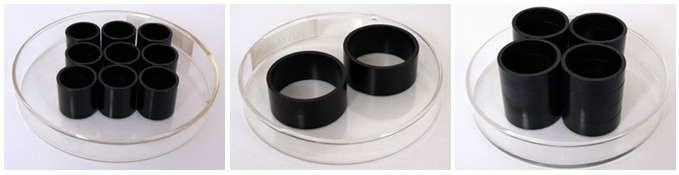

Thin wall ring magnet

Feature:

1. The thinnest thickness of thin ring magnet is 0.5mm, the much magnetic properties is higher than the ferrite;
2. Bonded NdFeB ring magnet as a once forming shape, without post processing, the process is simple, d the precision of size is better than sintered magnet;
3. Bonded ring NdFeB magnet can be multi-polar magnetization;
4. Working temperature high to Tw = 150 ℃;
5. Good in corrosion resistance.

High wall ring magnet

Feature:

1. For the high ring magnet, once pressing can do 40-45mm high, for the product wall larger than 40-45mm ,which need pressing times, the high wall density is homogeneous, magnetic properties much higher than the ferrite;
2. Bonded high wall ring NdFeB magnet as a once forming shape, , dimensional accuracy is better than sintered magnet;
3. High wall ring magnet can be multi-polar magnetization;
4. High temperature, Tw = 150 Degree;
5. Good in corrosion resistance.
