Open Mold & Custom Large Neodymium Magnets


Material:              Sintered NdFeB
Composition:      Nd:26-33%; Dy-Tb:0-1.5%; Al:0.1-1.0%; B:1.0-1.2%; Fe:63.2-68.5%; Nb:0.3-1.4%
Shapes & Sizes:  Large shape neodymium magnets, various sizes can be customized
Grade:                  N35~N52, N30M~N50M, N30H ~N48H, N30SH~N45SH, N28UH~~N40UH, N28EH~N38EH
Coating:                NiCuNi, black epoxy, grey epoxy, Ni-Au, Ni-Ag, Zn,
Packing:                seaworthy packing, anti-magnetism airway packing


Minimum Order Quantity: Normally we don't have MOQ requirements.
Price:                                  The prices vary in different materials, grades, sizes, requirements and so on.
Payment Terms:                 Telegraphic transfer, Wire transfer;
Delivery Terms:                  By air, by sea, by express;
Delivery Time:                     Depends on order quantity, difficulty of manufacturing, etc.
Standard Shipping Mark:   CMS MAG
Country of origin:               China

Production Process:          Raw material-Casting-Hydrogen Description -Jet milling-Pressing-Sintering-Inspection-Machining-Plating-Magnetizing-Final Inspection-Packaging


Application: There are large disc neodymium magnets, large ring neodymium magnets, large block neodymium magnets and large tile shape neodymium magnets. They widely used in aviation, aerospace, automotive, electrical, electronics, sensors, computers, General products, toys, and speakers for wireless and other fields. It's especially suitable for the development of high-performance, compact and energy-saving device - a new alternative.
Features: The large neodymium magnets, which can be custom for customers. Once you supply the size of special large shape. We will try our best to custom for you .
The Product appearance can be gold, silver, nickel, chrome, zinc plating and epoxy coated black handle. Performance can be produced from the N-EH class, grades have N30-N45 more. Temperature of 80-200 degrees.
Advantage: The large neodymium magnets can be custom ,which can be made according to customers requirements. High magnetic properties can be processed into a variety of specifications.
Disadvantage: The magnetic power is so large,only can be used in large equipments. The large power can hurt someone who are not care.
China Magnets Source Material Limited have been custom the large neodymium magnets for our customers. For example the size can be 150x50x30 mm,D200x50 mm. Which are experienced by our company. So if you need the large neodymium magnets, please feel free to let us know.

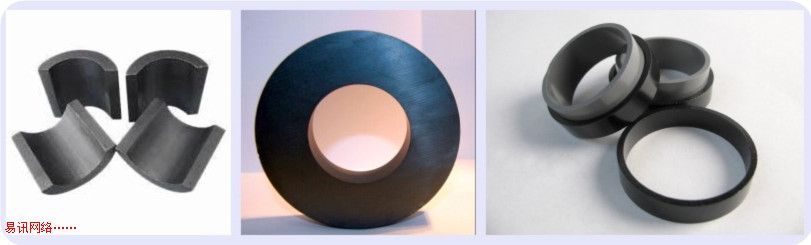

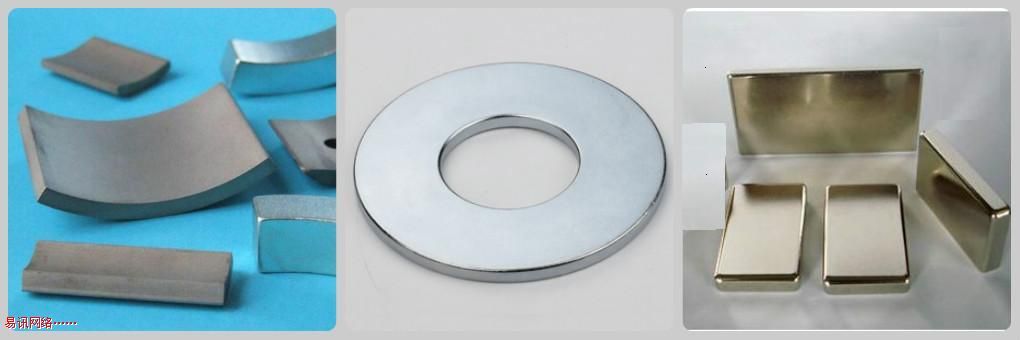

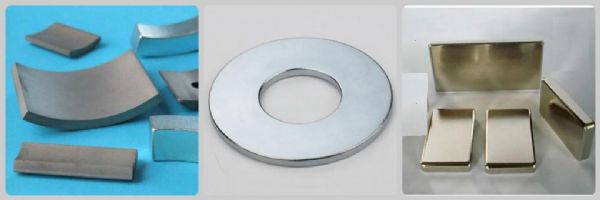

More Photos of Open mold & custom large neodymium magnets
